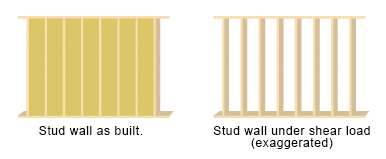

When considering home construction and maintenance, the structural integrity of the walls is paramount. In wood frame construction, the walls bear the weight of the roof, shingles, standing rainwater, and snow. Additionally, lateral forces from gusts and high winds can exert pressure on the walls, causing what is known as a “shearing force.”
Understanding Shearing Forces and Structural Strength
Shearing forces can distort walls; building codes require specific design standards to counteract these forces. However, walls are often built to minimum standards, resulting in creaking and shaking during high winds or movement.
The Role of Spray Foam Insulation
To reinforce both the studs and the exterior sheathing inside the walls, high-density closed-cell spray foam is highly recommended. This type of spray foam adheres fully to both surfaces, providing added rigidity. This reduces wall movement caused by vibration, wind, and occupant activity. Additionally, closed-cell spray foam can significantly enhance a wall’s resistance to “racking events” such as hurricanes or high winds, often surpassing building code requirements.
Enhanced Racking Strength with Spray Foam
Research by the National Association of Home Builders (NAHB) has shown that applying spray polyurethane foam (SPF) to walls can increase their racking strength by 75 to 200 percent. This is particularly beneficial for walls made of vinyl siding, gypsum board, light gauge metal, or OSB plywood.
The Racking Test Explained
A racking test is used by engineers to measure a wall’s resistance to shear forces. In this test, an 8 ft. x 8 ft. model wall is subjected to horizontal (lateral) forces until it fails.
Walls insulated with spray-applied polyurethane foam consistently demonstrate greater strength and resilience compared to those with conventional insulation.
Real-World Comparisons
In a series of racking tests, walls with spray-applied polyurethane foam insulation were compared to walls without it. The tests used exterior-facing materials such as plywood textured siding and 15-lb. building paper with vinyl siding. Walls insulated with spray foam showed significantly less deformation under load and greater overall strength.
Further comparisons between spray foam insulation and R-19 fiberglass batts revealed similar results. Walls with spray foam insulation, faced with drywall or oriented strand board (OSB), exhibited superior strength and stability.
Proven Results
The strength-enhancing effects of spray foam insulation are well-documented in studies such as “Testing and Adoption of Spray Polyurethane Foam for Wood Frame Building Construction” by the NAHB Research Center. These findings underscore the benefits of using spray foam to reinforce your home’s structural integrity.
Conclusion
At Northern Insulation Solutions, we specialize in spray foam insulation, offering a robust solution for enhancing your home’s strength and energy efficiency. Contact us today at (907) 891-8626 or James@insulateak.net for more information or to get a quote. Trust us to fortify your home against the elements with our expert insulation services.
